K20 K30 Tungsten Solid Carbide Rods For Extrusion Molding And Dies
Tungsten Solid Carbide Rods has no directivity compared with ordinary die steel due to powder sintering in the sintering process of cemented carbide. Different shapes can be divided according to the specifications during processing, and the fracture toughness of superhard materials is small. In a wide range of applications, cemented carbide has good hardness and toughness, and has become the most widely used cemented carbide material, widely used in engineering and tool products.
Specification Tungsten Solid Carbide Rods
| WC bar / rod | Diameter | Length |
| Type | Size (mm) | Tolerance (mm) | Size (mm) | Tolerance (mm) |
| JX040-50 | 4 | +0.2～0.4 | 50 | 1 |
| JX050-50 | 5 | +0.2～0.4 | 50 | 1 |
| JX060-50 | 6 | +0.2～0.4 | 50 | 1 |
| JX060-60 | 6 | +0.2～0.4 | 60 | 1 |
| JX080-60 | 8 | +0.2～0.4 | 60 | 1 |
| JX100-75 | 10 | +0.2～0.4 | 75 | 1.5 |
| JX100-100 | 10 | +0.2～0.4 | 100 | 2 |
| JX120-75 | 12 | +0.2～0.4 | 75 | 1.5 |
| JX120-100 | 12 | +0.2～0.4 | 100 | 2 |
| JX140-100 | 14 | +0.3～0.5 | 100 | 2 |
| JX160-100 | 16 | +0.3～0.5 | 100 | 2 |
| JX200-100 | 20 | +0.3～0.5 | 100 | 2 |

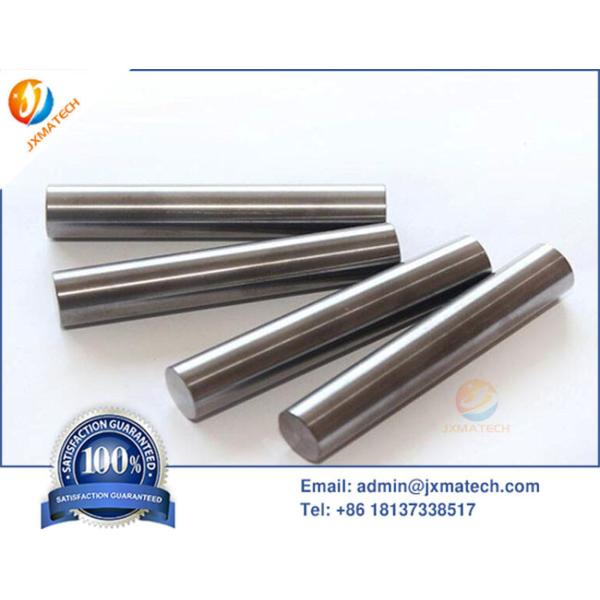

Tungsten Carbide Rods Picture:
Application of Tungsten Carbide Rods
1. Tungsten carbide rod is suitable for micro drilling.
2. Tungsten carbide rod has good wear resistance and bending resistance. It is mainly used in the production of extrusion rods, and is suitable for general drill bits, cutters and other wear-resistant parts.
3. Tungsten carbide rod has good wear resistance and bending resistance. It is mainly used for the production of extrusion rods, small diameter micro drills, watch processing tools, integral reamers and other tools and wear-resistant parts.
4. Tungsten carbide rod is an ultra-fine particle tungsten steel material. This tungsten steel bar has the characteristics of high hardness, good bending strength, good wear resistance, not easy to collapse, not easy to break and so on. It is a special material for micro-drilling and is widely used in tungsten steel milling cutters, engraving knives and wear-resistant parts.
